Superxon 1.6T OSFP224 transceivers are compliant to the latest releases of the OSFP224 MSA, IEEE802.3cu.

Hot-pluggable OSFP224 form factor
Up to 212.5Gbps data rate per channel by PAM4 modulation
Power dissipation: 30W
Operating temperature range: 0℃ ~ 70℃
Single +3.3V power supply
Maximum link length of 500m on SMF fiber
8x200G PAM4 Sipho-based transmitter
MPO-16 or Dual MPO-12 APC connector receptacle optical interface compliant
Compliant with ROHS2.0

Superxon 800G OSFP112 transceivers are compliant to the latest releases of the OSFP112 MSA, IEEE802.3cu.

Hot-pluggable OSFP form factor
Supports 850Gb/s aggregate bit rate
Power dissipation <16W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
8x100G PAM4 retimed 800GAUI-8 electrical interface
Dual MPO-12/APC Optical Connector
I2C management interface
RoHS2.0 compliant

Superxon 800G OSFP112 transceivers are compliant to the latest releases of the OSFP112 MSA, IEEE802.3cu.

Hot-pluggable OSFP form factor
Supports 850Gb/s aggregate bit rate
Power dissipation <16W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
8x100G PAM4 retimed 800GAUI-8 electrical interface
MPO-16 receptacles
I2C management interface
RoHS2.0 compliant

Superxon 400G OSFP112 transceivers are compliant to the latest releases of the OSFP112 MSA, IEEE802.3cu.

Hot-pluggable OSFP112 Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <8W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 2km on Single Mode Fiber (SMF)
4x100G PAM4 EML-based CWDM transmitter
4x100G PAM4 retimed 400GAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
RoHS2.0 compliant

Superxon 400G QSFP-DD transceivers are compliant to the latest releases of the QSFPDD MSA, IEEE802.3cu.

Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <12W
Commercial case temperature range of 0 to 70℃ or -40 to 85℃
Single 3.3V power supply
8x50G PAM4 retimed 400GAUI-8 electrical interface
I2C management interface
RoHS2.0 compliant

Superxon 200G QSFP56 transceivers are compliant to the latest releases of the QSFP56 MSA, IEEE802.3cu.

Hot-pluggable QSFP56 form factor
Supports 212.5Gb/s aggregate bit rate
Power dissipation <5W
Operating case temperature: 0 to 70℃ or -40 to 85℃
Single 3.3V power supply
4x50G PAM4 retimed 200GAUI-4 electrical interface
I2C management interface
RoHS2.0 compliant

Superxon 100G QSFP28 transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE802.3cu.

Supports bit rates up to 106.25Gbps
Single 3.3V power supply
Hot-pluggable capability
Digital diagnostics functions are available via the I2C  interface.

Superxon 100G QSFP28 transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE802.3cu.

Supports bit rates up to 106.25Gbps
Single 3.3V power supply
Hot-pluggable capability
Digital diagnostics functions are available via the I2C  interface.

Superxon 25G SFP28 transceivers are compliant to the latest releases of the SFP28 MSA, IEEE802.3cc.

Supports bit rates up to 28Gbps
3.3V power supply
Hot-pluggable capability
SFP28 MSA Compliant

Superxon 10G SFP+ transceivers are compliant to the latest releases of the SFP+ MSA, IEEE802.3ae.

Supports bit rates up to 10Gbps
3.3V power supply
Hot-pluggable capability
SFP+ MSA Compliant

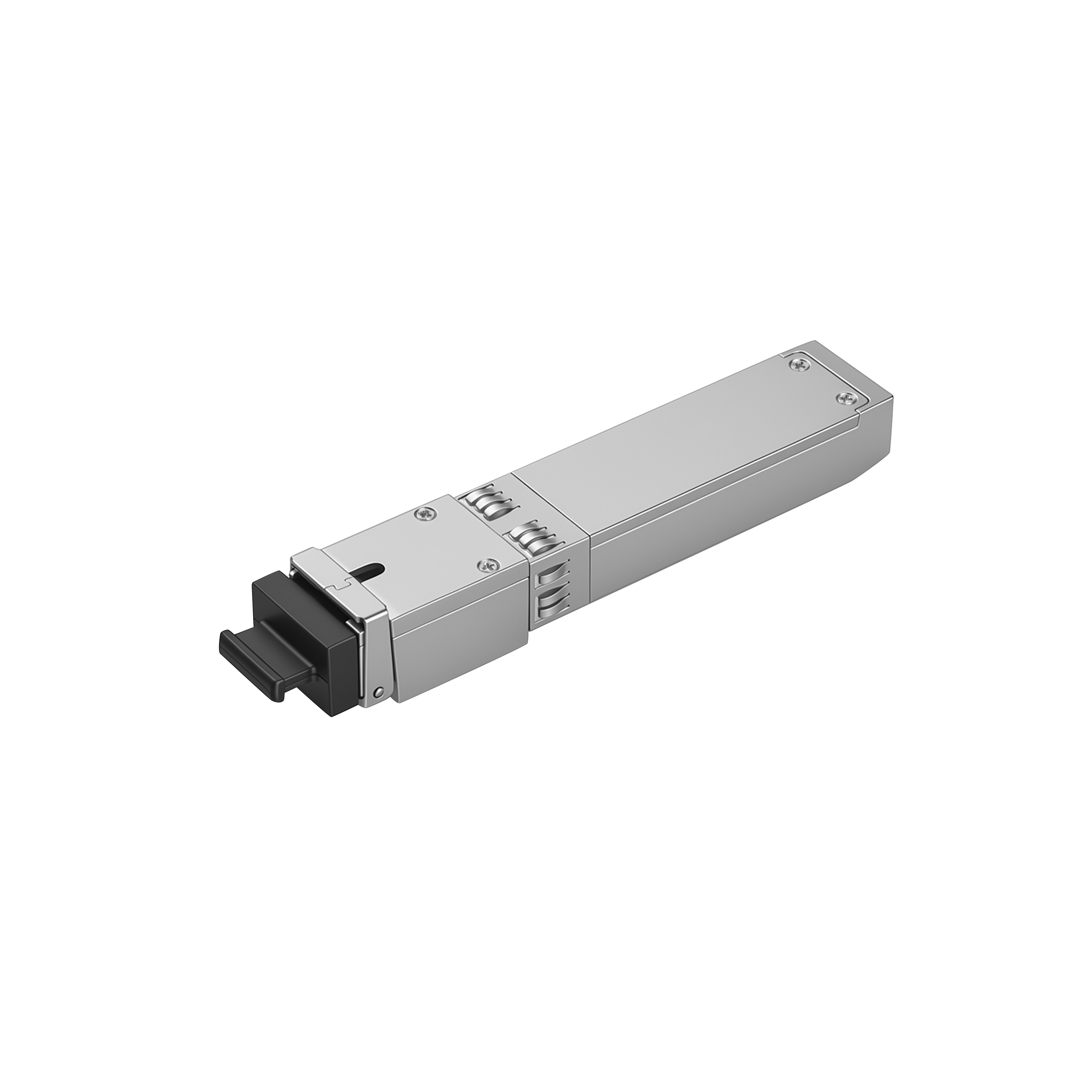

Single fiber bi-directional data links TX 10G or 2.5G or 1.25Gbps , RX 10Gbps application
3.3V power supply
Selectable SC/UPC or SC/APC connector
High power 1270nm or 1310nm DFB LD
High sensitivity 1577nm APD
