50G-PON OLT MPM
0 to 70°C operating case temperature
Single 3.3V power supply
SFP-DD or QSFP-DD package with SC/UPC receptacle connector
Hot-pluggable capability
Support 20km transmission distance with SMF
Low power dissipation
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS10 compliance
Single 3.3V power supply
SFP-DD or QSFP-DD package with SC/UPC receptacle connector
Hot-pluggable capability
Support 20km transmission distance with SMF
Low power dissipation
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS10 compliance

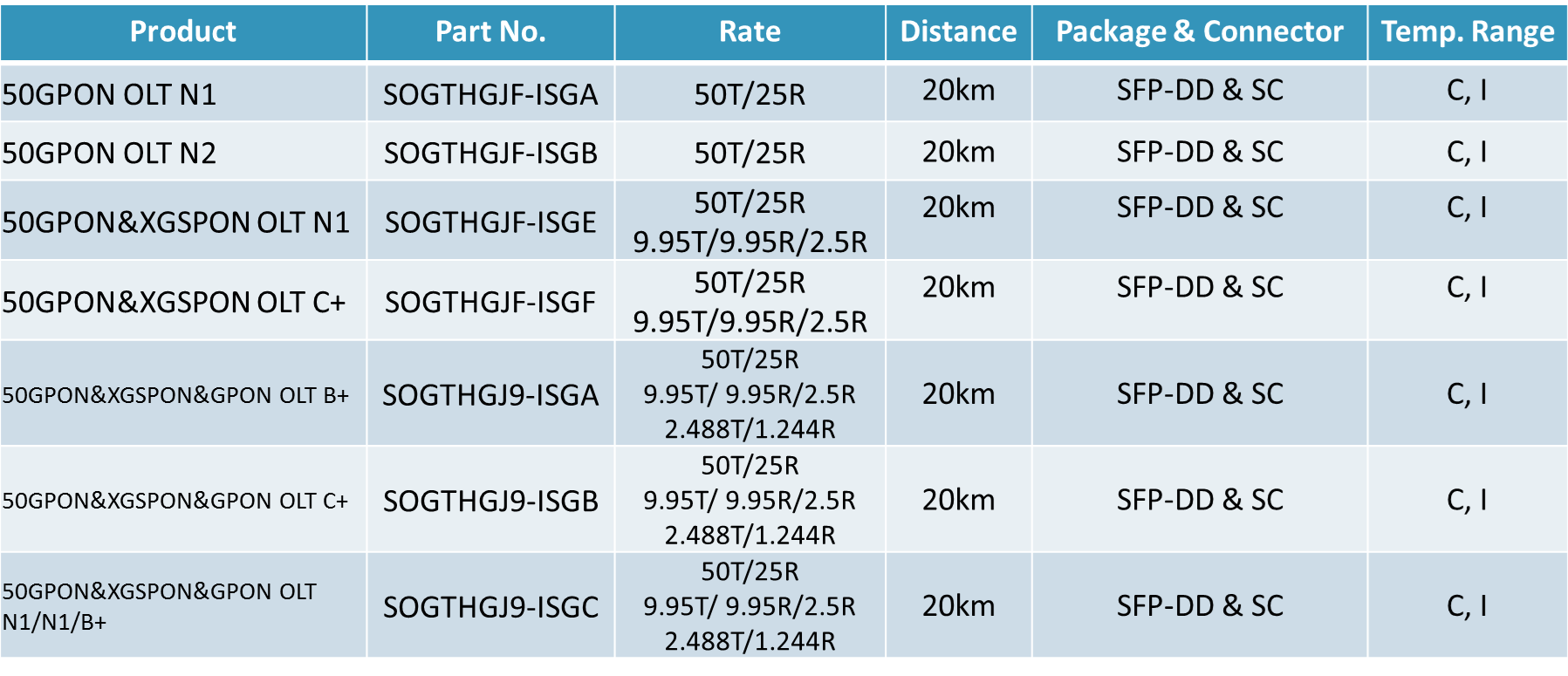

| Part Number | ODN Class | λ(nm) | Data Rate(Gb/s) | Package | Connector | TEMP. |
| SOGTHGJF-ISGE | N1 | 1342T/1286R 1577T/1270R |
50T/25R 9.95T/9.95R |
SFP-DD | SC | C/I |
| SOGTHGJF-ISGF | C+ | |||||
| SOGTHGJ9-ISGE | B+ | 1342T/1286R 1577T/1270R 1490T/1310R |
50T/25R 9.95T/9.95R 2.5T/1.25R |
SFP-DD | SC | C/I |
| SOGTHGJ9-ISGF | C+ | |||||
| SOGTHGJ9-QSGA | B+ | 1342T/1286R 1577T/1270R 1490T/1310R |
50T/25R 9.95T/9.95R 2.5T/1.25R |
QSFP-DD | SC | C/I |
| SOGTHGJ9-QSGB | C+ |
