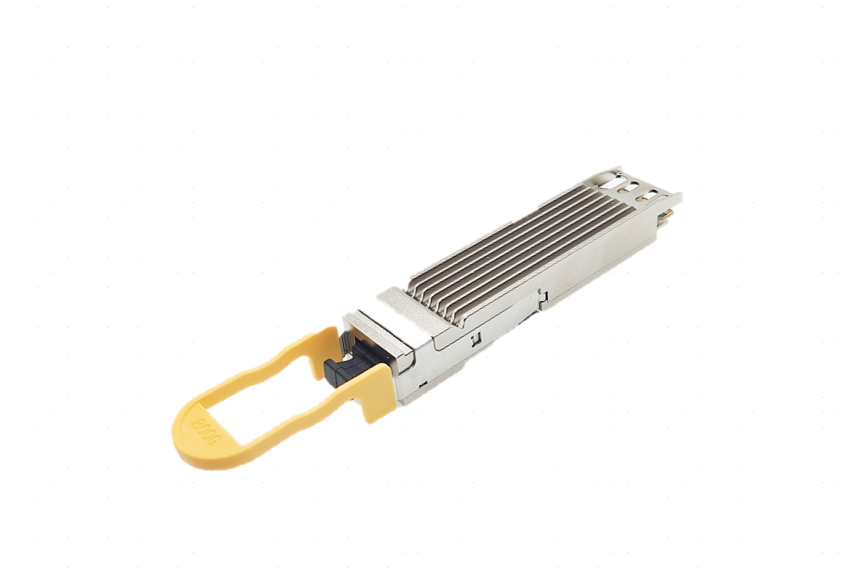

Superxon 1.6T OSFP224 transceivers are compliant to the latest releases of the OSFP224 MSA, IEEE802.3cu.

Hot-pluggable OSFP224 form factor
Up to 212.5Gbps data rate per channel by PAM4 modulation
Power dissipation: 30W
Operating temperature range: 0℃ ~ 70℃
Single +3.3V power supply
Maximum link length of 500m on SMF fiber
8x200G PAM4 Sipho-based transmitter
MPO-16 or Dual MPO-12 APC connector receptacle optical interface compliant
Compliant with ROHS2.0

Superxon 800G OSFP112 transceivers are compliant to the latest releases of the OSFP112 MSA, IEEE802.3cu.

Hot-pluggable OSFP form factor
Supports 850Gb/s aggregate bit rate
Power dissipation <16W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
8x100G PAM4 retimed 800GAUI-8 electrical interface
Dual MPO-12/APC Optical Connector
I2C management interface
RoHS2.0 compliant

Superxon 800G OSFP112 transceivers are compliant to the latest releases of the OSFP112 MSA, IEEE802.3cu.

Hot-pluggable OSFP form factor
Supports 850Gb/s aggregate bit rate
Power dissipation <16W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 500m on Single Mode Fiber (SMF)
8x100G PAM4 retimed 800GAUI-8 electrical interface
MPO-16 receptacles
I2C management interface
RoHS2.0 compliant

Superxon 400G OSFP112 transceivers are compliant to the latest releases of the OSFP112 MSA, IEEE802.3cu.

Hot-pluggable OSFP112 Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <8W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 2km on Single Mode Fiber (SMF)
4x100G PAM4 EML-based CWDM transmitter
4x100G PAM4 retimed 400GAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
RoHS2.0 compliant

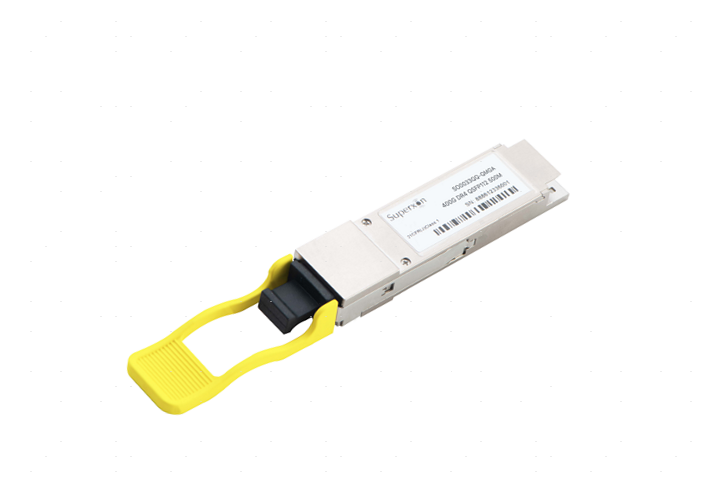

Superxon 400G QSFP-DD transceivers are compliant to the latest releases of the QSFPDD MSA, IEEE802.3cu.

Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <12W
Commercial case temperature range of 0 to 70℃ or -40 to 85℃
Single 3.3V power supply
8x50G PAM4 retimed 400GAUI-8 electrical interface
I2C management interface
RoHS2.0 compliant

Superxon 200G QSFP56 transceivers are compliant to the latest releases of the QSFP56 MSA, IEEE802.3cu.

Hot-pluggable QSFP56 form factor
Supports 212.5Gb/s aggregate bit rate
Power dissipation <5W
Operating case temperature: 0 to 70℃ or -40 to 85℃
Single 3.3V power supply
4x50G PAM4 retimed 200GAUI-4 electrical interface
I2C management interface
RoHS2.0 compliant

Superxon 100G QSFP28 BIDI transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE 802.3ba.

Hot-pluggable QSFP28 form factor
Lane signaling rate 106.25Gb/s with PAM4
4x25Gb/s electrical interface
Up to 80km transmission on single mode fiber (SMF) with FEC
BIDI LC receptacles
Operating case temperature: 0 to 70℃ or -40 to 85℃
Single 3.3V power supply
I2C Interface with Integrated Digital Diagnostic Monitoring
Maximum power consumption 5W
RoHS2.0 compliant

Superxon 100G QSFP28 BIDI transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE 802.3ba.

Hot-pluggable QSFP28 form factor
Lane signaling rate 106.25Gb/s with PAM4
4x25Gb/s electrical interface
Up to 40km transmission on single mode fiber (SMF) with FEC
BIDI LC receptacles
Operating case temperature:  0 to 70℃ or -40 to 85℃
Single 3.3V power supply
I2C Interface with Integrated Digital Diagnostic Monitoring
Maximum power consumption 5W
RoHS2.0 compliant

Superxon 100G QSFP28 transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE802.3cu.

Supports bit rates up to 106.25Gbps
Single 3.3V power supply
Hot-pluggable capability
Digital diagnostics functions are available via the I2C  interface.
