Superxon releases a full series of 25G WDM SFP28 products

In February 2021, Chengdu Superxon Communication Technology Co., Ltd (hereinafter referred to as "Superxon") releases a full series of 25G WDM SFP28 optical module products (CWDM /MWDM /LWDM /DWDM) which has independent intellectual property rights. These products can meet various 5G networks of operators.



New products include:



1. 25G CWDM optical module which uses non-cooled DFB laser, is mature and low cost solution.



2. 25G MWDM optical module is suitable for MWDM network proposed by China Mobile. Based on the first six wavelengths of 25G CWDM, achieves 12 wavelengths application by TEC controller and meets commercial and industrial grade requirement. Combined with “Operation Administration and Maintenance” (hereinafter referred to as "OAM") technology this product supports OAM function to monitor, control the module and update software remotely.



3. 25G LWDM optical module is suitable for LWDM network proposed by China Telecom. There are 12 wavelengths with 800GHz grid and working at zero dispersion point nearly. OAM function is included.



4. 25G DWDM optical module is suitable for 5G front-haul network. It supports 21~60ch and the maximum power consumption is less than 2.0W. Its transmission distance is up to 10km and can meet commercial and industrial grade temperature requirement.

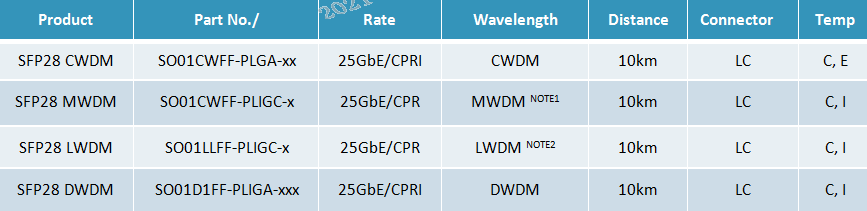

SFP28 25G WDM Catalog:



Note1: MWDM Wavelengths includes 1267.5/1274.5/1287.5/1294.5/1307.5/1314.5/

1327.5/1334.5/1347.5/1354.5/1367.5/1374.5nm



Note2: LWDM Wavelengths includes 1269.23/1273.54/1277.89/1282.26/1286.66/

1291.10/1295.56/1300.05/1304.58/1309.14/1313.73/1318.35nm
